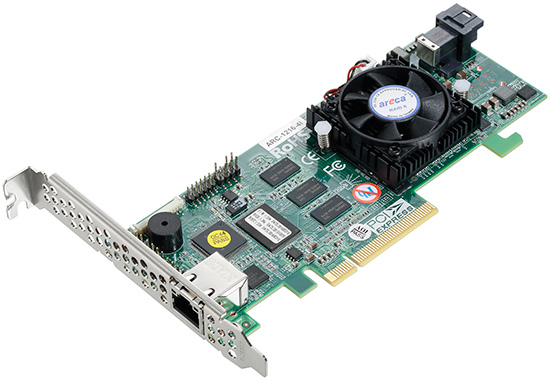

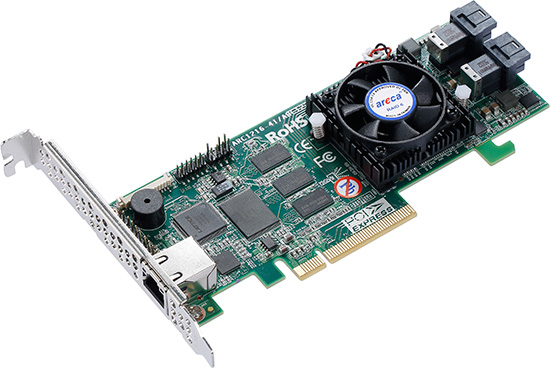

ARC-12x6 ARC-12x6 Series12 Gb/s SAS RAID Adapters

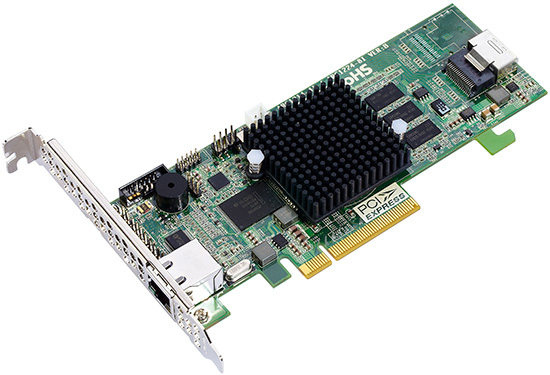

ARC-12x4ARC-12x4 Series6 Gb/s SAS RAID Adapters

ARC-1884

ARC-1884ixl Series (12Gb/s SAS RAID Adapters)

ตระกูล ARC-1884ixl รุ่นที่สามใหม่นำเสนอเทคโนโลยีขั้นสูงสำหรับประสิทธิภาพที่เพิ่มขึ้นและการปกป้องข้อมูลองค์กรที่ดีขึ้น พวกเขาได้รับการออกแบบด้วยโปรเซสเซอร์ Dual Core ROC 1.2 GHz สถาปัตยกรรมหน่วยความจำ DDR3-1866 และอินเตอร์เฟส PCIe 3.0 สำหรับฐานข้อมูลที่ต้องการประสิทธิภาพสูงสุดและแอพพลิเคชั่นไอที ตระกูล ARC-1884ixl ประกอบด้วยโปรไฟล์ต่ำ 8 พอร์ตและโปรไฟล์ต่ำ 12 พอร์ตพร้อมพอร์ตภายนอกเพิ่มเติม 4 พอร์ตพร้อมตัวเชื่อมต่อ SFF-8644 สำหรับปริมาณงาน 12Gb / s ในแต่ละพอร์ต ผู้ประกอบระบบและผู้ใช้สามารถวาง ARC-1884ixl-8/12 ไว้ในแชสซีของตู้แร็ค 2U โดยไม่ต้องใช้การ์ดไรเซอร์

Product Highlights

  • Supports up to (512) 12Gb/s SAS,SATA or SSD drives using SAS expanders
  • Support up to 2GB DDR3-1866 cache
  • Support read/write cache allocation by policy
  • Support optional battery backup module (BBM)
  • Self-encrypting drive management
  • SES2, SMP and SGPIO enclosure management
  • Redundant flash image for adapter availability
  • Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID100)
  • Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
  • Broad operating support including Windows, Linux (open source),FreeBSD (open source), Soaris (open source), Mac and VMware
สินค้าใน Series นี้

ARC-1884ixl-8

ARC-1884ixl-12

คุณสมบัติเฉพาะรุ่น

ARC-1884ixl-8ARC-1884ixl-12
Host Bus Interface8-Lane PCI Express® 3.08-Lane PCI Express® 3.0
Ports8 x internal & 4 x external12 x internal & 4 x external
Drive Connectors2 x SFF-8643 & 1 x SFF-86443 x SFF-8643 & 1 x SFF-8644

คุณสมบัติทั่วไป

Data Transfer RateUp to 12Gb/s per port
Drive SupportUp to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSD, using 12Gb/s SAS Expander
Cache Memory2GB on-board DDR3-1866 SDRAM with ECC protection
Physical DimensionsLow Profile: 190(L) x 64.4(H) mm
BBM SupportARC-6120BA-T121-12G
Power DissipationTypical: 18W
Operating Temperature0 °C to 60 °C
Operating Humidity10% to 85%, non-condensing
RAID LevelsRAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
RAID-on-Chip ControllerDual Core RAID-on-Chip 1.2GHz

คุณสมบัติเกี่ยวกับ RAID

  • Multiple RAID selection
  • Configurable stripe size up to 1MB
  • Support HDD firmware update
  • Online array roaming
  • Online RAID level/stripe size migration
  • Online capacity expansion and RAID level migration simultaneously
  • Online volume set growth
  • SED (self-encrypting drives) function support
  • Multiple pairs SSD/HDD disk clone function
  • SSD automatic monitor clone (AMC) support
  • Instant availability and background initialization
  • Support global and dedicated hot spare
  • Automatic drive insertion/removal detection and rebuilding
  • Support for native 4K and 512 byte sector SAS and SATA devices
  • Support intelligent power management to save energy and extend service life
  • Support NTP protocol synchronize RAID controller clock over the on board Ethernet port

Management Monitor

McRAID Storage Manager

  • Web-based GUI management utility
  • Remote configuration, monitoring, and notification
  • Graphical-based management utility

McRAID Utility

  • Command-line interface
  • CIM provider for VMware
  • API code support

McBIOS Configuration Utility

  • Legacy configuration utility
  • Flashable BIOS support

Monitors/Notification

  • Global HDD activity/fault connector, individual fault connector
  • LCD/I²C connector and alarm buzzer
  • SNMP
  • SMTP

Operating Systems

  • Microsoft Windows
  • Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux
  • OpenBSD
  • XenServer
  • unRAID
  • Solaris
  • FreeBSD
  • macOS
  • VMware ESXi

Downloads

ARC-1884ixl series SpecificationARC-1884ixl series User ManualARC-1883 series & 1884 series Quick Installation GuideCLI Utility User ManualArcSAP User ManualSNMP User Manual
