L-W512FAHZ37FA-B

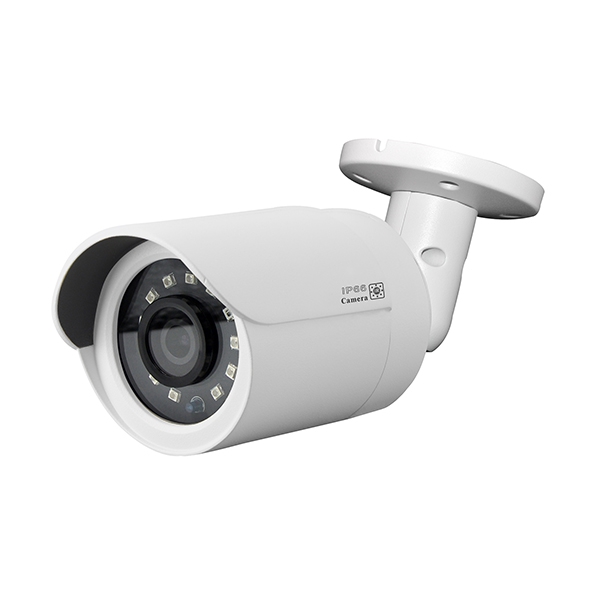

2MP Fixed Lens Bullet IP Camera
- 3.6 mm fixed lens
- H.265 Full HD1080P IP Camera
- 1/2.7" SC2232 CMOS sensor
- Full HD Resolution 1920 x 1080P
- Low Illumination 0.01Lux
- Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
- D-WDR, Motion Detection, Privacy Mask, Mirror, Flip
- RTSP and Onvif 17.06 compatible
- H.265/H.264 dual-stream media server
- Easy-to-use P2P Cloud service
- Multi web browser, PC Client, mobile APP remote access
- Lightning protection 4000V
- Strong water-proof housing, IP66
- 12 pcs SMD Array IR Leds, IR distance 15-20 meters
รายละเอียดทางด้านเทคนิค (Specification)
| Model | L_W512FAHZ37FA-B |
|---|---|
| Image Sensor | 1/2.7" Smartsens CMOS |
| Effective Pixels | 1936(H)×1096 (V) |
| Electronic Shutter | AUTO |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| BLC / HLC | Support |
| DNR | 2D/3D DNR |
| Other | Motion Detection, Privacy Mask, Flip, Mirror |
| Embedded Solution | Mstar313E+SC2232 |
| Video Standard | H.264/H.265 |
| Video Resolution | Main stream: 1080P@25fps, 720P@30fps |
| Sub stream: VGA@ 360P/CIF@25fps, etc. | |
| Video Bitrates | 500Kbps - 6Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| IR Led | 12pcs SMD Array IR LEDs |
| IR Distance | 15-20M IR Distance |
| Focal length | 3.6 mm lens |
| Zoom | N/A |
| POE, External Audio | Optional |
| Protocol | RTSP/DHCP/NTP/DST/FTP/SMTP |
| P2P | Yes |
| Web | IE , Firefox 32bit esr |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 5 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
